Operating weight
12 - 38 t
Fields of application
Mining
Application

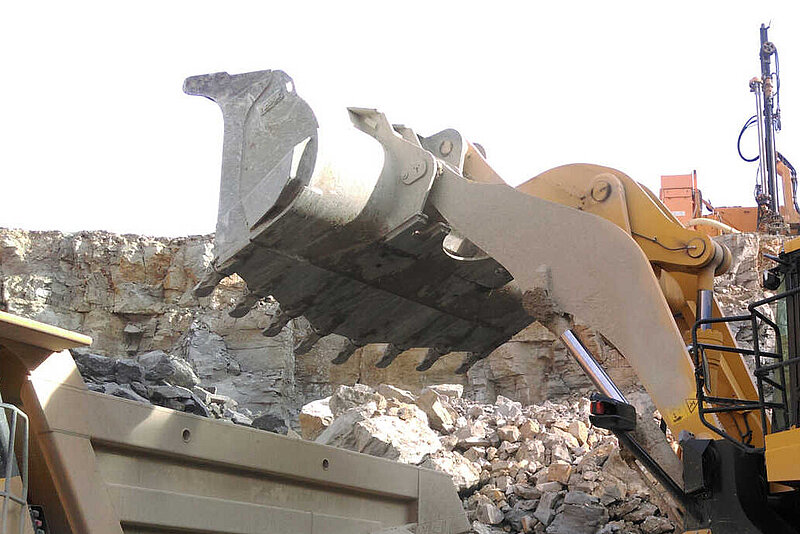

With its extremely robust construction design, the Rock Shovel can also be used under difficult conditions with particularly strong wear behaviour, such as found in the mining industry when handling or loading quarry and rock materials.
Features

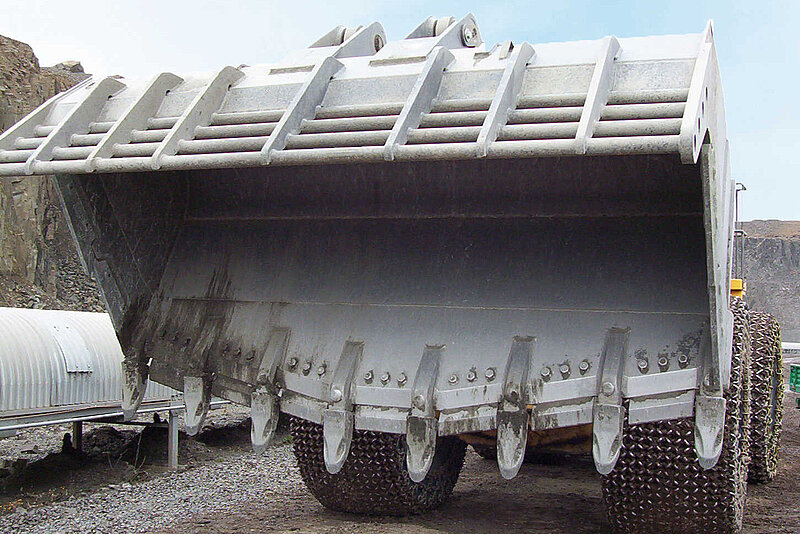

- Very generously dimensioned box
- Shovel with trapezoidal blade
- All cutting widths are fitted with 8 teeth
- Spillguard with pipes or slots
- With CWP tooth system as standard
Extra equipment
- Bucket body completely in HB400
- Side stone deflectors
- Protection segments
- Screw-on segments
Variants
| Variant | Cutting width | Capacity ISO | Weight | |
|---|---|---|---|---|
| Class VIII (12 - 14 t) | 2.800 mm | 2.300 l | 1.685 - 1.860 kg | Enquire variant |
| Class IX (14 - 17 t) | 3.000 mm | 3.000 l | 2.110 - 2.350 kg | Enquire variant |
| Class X (17 - 23 t) | 3.200 mm | 3.800 l | 3.000 - 3.340 kg | Enquire variant |
| Class XI (23 - 30) | 3.600 mm | 4.600 l | 3.590 - 3.940 kg | Enquire variant |
| Class XII (30 - 38 t) | 3.800 mm | 6.300 l | 5.300 - 5.920 kg | Enquire variant |
