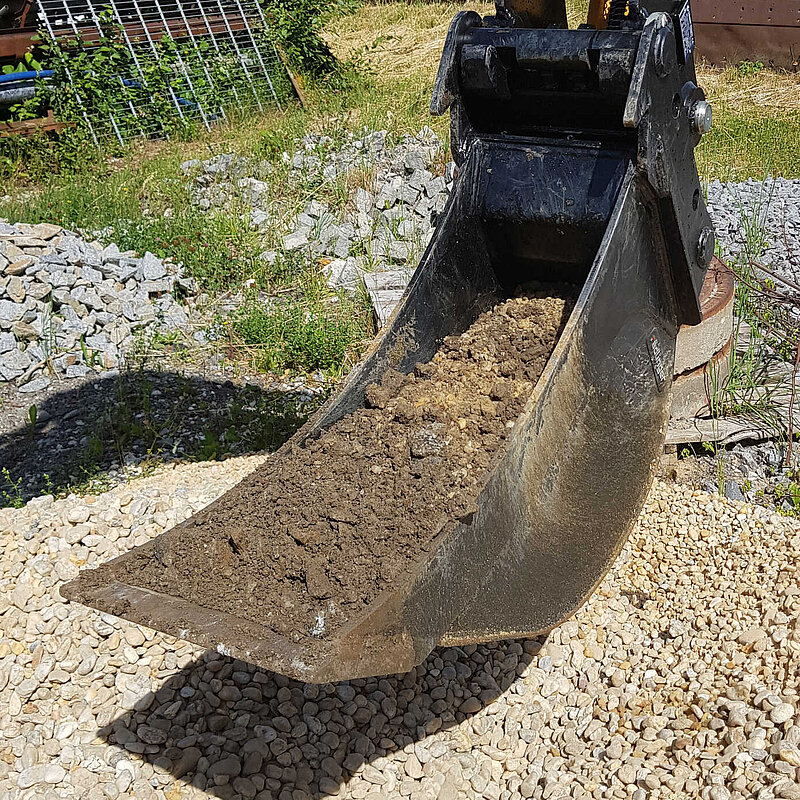

Standard Backhoe Bucket without Teeth (6 to 12 t)
View product
Operating weight
6 - 12 t
Fields of application
Earth Movement, Landscaping
Application
The Standard Backhoe Bucket without Teeth is perfectly suited for constructing pipeline trenches, shafts and the field of network construction. Furthermore, it is used for loading loose bulk materials.
Features
- Equipped with Radlog interface as standard
- Base in HB400
- Side cutting edge in HB400
- Nose for bucket transport
Extra equipment
- Profile blade
Variants
| Cutting width | Capacity ISO | Weight | |
|---|---|---|---|
| 325 mm | 91 l | 108 kg | Enquire variant |
| 400 mm | 122 l | 118 kg | Enquire variant |
| 500 mm | 165 l | 132 kg | Enquire variant |
| 600 mm | 210 l | 146 kg | Enquire variant |
| 800 mm | 305 l | 174 kg | Enquire variant |
| 900 mm | 354 l | 188 kg | Enquire variant |
| Cutting width | Capacity ISO | Weight | |
|---|---|---|---|
| 325 mm | 114 l | 140 kg | Enquire variant |
| 400 mm | 152 l | 144 kg | Enquire variant |
| 500 mm | 206 l | 161 kg | Enquire variant |
| 600 mm | 263 l | 178 kg | Enquire variant |
| 800 mm | 373 l | 212 kg | Enquire variant |
| 900 mm | 445 l | 229 kg | Enquire variant |
| 1.000 mm | 490 l | 248 kg | Enquire variant |
| Cutting width | Capacity ISO | Weight | |
|---|---|---|---|
| 325 mm | 123 l | 152 kg | Enquire variant |
| 400 mm | 165 l | 166 kg | Enquire variant |
| 500 mm | 225 l | 185 kg | Enquire variant |
| 600 mm | 286 l | 205 kg | Enquire variant |
| 800 mm | 418 l | 245 kg | Enquire variant |
| 900 mm | 486 l | 265 kg | Enquire variant |
| 1.000 mm | 555 l | 285 kg | Enquire variant |
| 1.200 mm | 693 l | 325 kg | Enquire variant |
