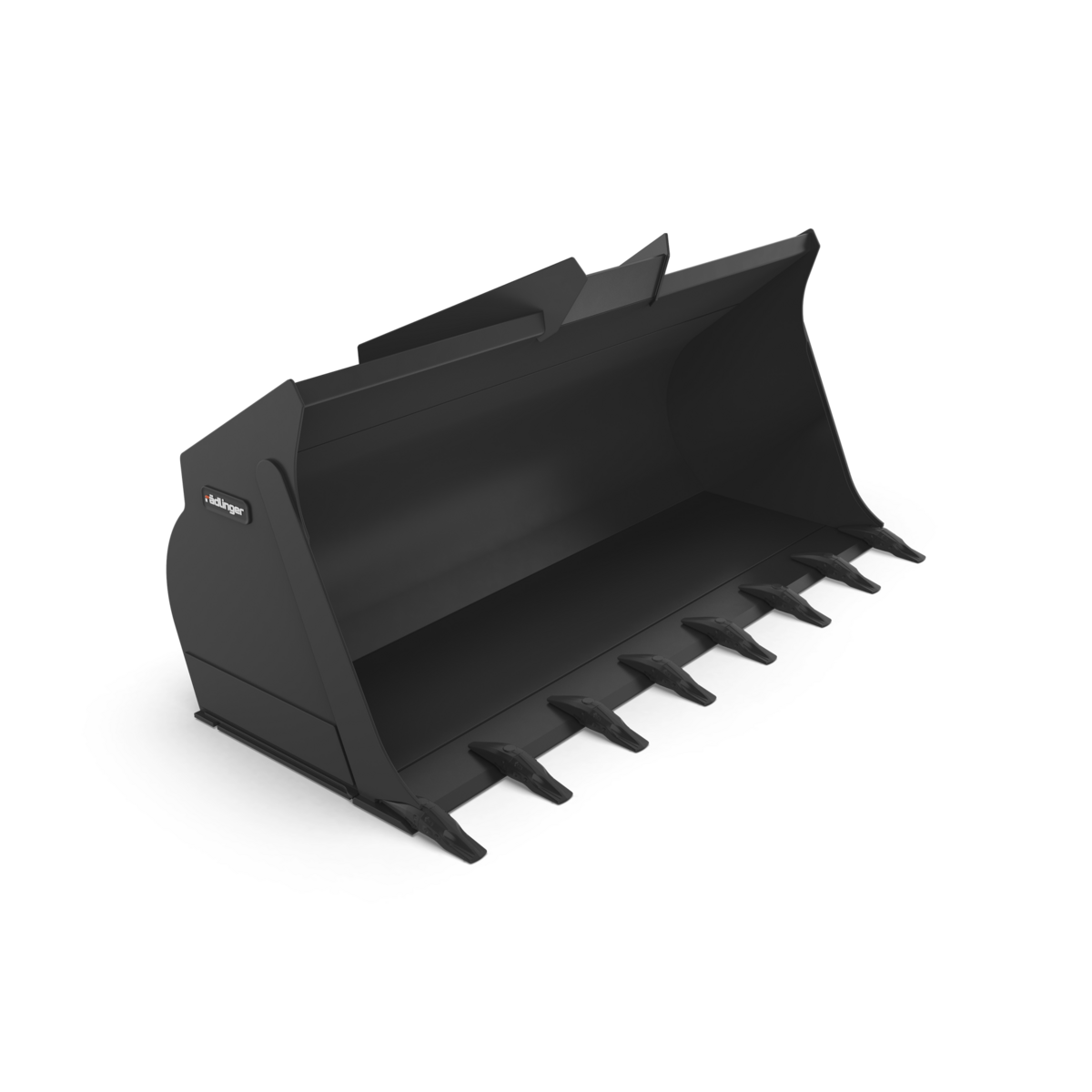

General Purpose Shovel

View product

Operating weight

4 - 30 t

Application

The General Purpose Shovel is suitable for handling “medium” bulk materials (e.g. ballast, soil, gravel, stone chippings or sand loading). Other areas of application depend on choice of equipment with pull-off edge or upward increasing base at the rear of the shovel.

Features

Pull-off edge: Load area always remains straight since the edge can be used as a grading blade during reverse driving
Shovel shape designed for fast and maximum filling
Deflector plate in the mast area
Tilt angle indicator on each side
Manufactured in all sizes and for all carrier devices and with direct or quick coupler attachment possible
Equipped with wear strips on the base
Lifting eyes left and right for easy transport
Side protection in HB 400
With CWP tooth system as standard

Extra equipment

Bucket body completely in HB400
Tooth protection
Reversible screw-on blade

General Purpose Shovel in use

Unloading of wood chips with the General Purpose Shovel from Rädlinger

General Purpose Shovel from Rädlinger on a wheel loader

Variants

Class IV (4 - 6 t)

Cutting width	Capacity ISO	Weight
1.800 mm	850 l	314 kg	Enquire variant
1.900 mm	900 l	325 kg	Enquire variant
2.000 mm	950 l	337 kg	Enquire variant
2.100 mm	1.000 l	349 kg	Enquire variant
2.200 mm	1.050 l	360 kg	Enquire variant

Class V (6 - 8 t)

Cutting width	Capacity ISO	Weight
1.900 mm	1.000 l	404 kg	Enquire variant
2.000 mm	1.060 l	416 kg	Enquire variant
2.100 mm	1.120 l	428 kg	Enquire variant
2.200 mm	1.180 l	440 kg	Enquire variant
2.300 mm	1.240 l	454 kg	Enquire variant

Class VI (8 - 10 t)

Cutting width	Capacity ISO	Weight
2.200 mm	1.360 l	512 kg	Enquire variant
2.300 mm	1.420 l	534 kg	Enquire variant
2.400 mm	1.500 l	556 kg	Enquire variant
2.500 mm	1.560 l	580 kg	Enquire variant

Class VII (10 - 12 t)

Cutting width	Capacity ISO	Weight
2.400 mm	1.720 l	760 kg	Enquire variant
2.500 mm	1.800 l	792 kg	Enquire variant
2.600 mm	1.880 l	824 kg	Enquire variant
2.700 mm	1.960 l	856 kg	Enquire variant

Class VIII (12 - 14 t)

Cutting width	Capacity ISO	Weight
2.500 mm	2.300 l	928 kg	Enquire variant
2.600 mm	2.400 l	966 kg	Enquire variant
2.700 mm	2.500 l	1.002 kg	Enquire variant
2.800 mm	2.600 l	1.040 kg	Enquire variant

Class IX (14 - 17 t)

Cutting width	Capacity ISO	Weight
2.700 mm	2.930 l	1.246 kg	Enquire variant
2.800 mm	3.040 l	1.292 kg	Enquire variant
2.900 mm	3.150 l	1.338 kg	Enquire variant
2.990 mm	3.260 l	1.380 kg	Enquire variant

Class X (17 - 23 t)

Cutting width	Capacity ISO	Weight
2.800 mm	3.340 l	1.564 kg	Enquire variant
2.900 mm	3.470 l	1.618 kg	Enquire variant
2.990 mm	3.600 l	1.670 kg	Enquire variant
3.100 mm	3.730 l	1.732 kg	Enquire variant
3.200 mm	3.860 l	1.788 kg	Enquire variant

Class XI (23 - 30 t)

Cutting width	Capacity ISO	Weight
2.990 mm	4.170 l	2.038 kg	Enquire variant
3.100 mm	4.320 l	2.110 kg	Enquire variant
3.200 mm	4.470 l	2.182 kg	Enquire variant
3.300 mm	4.620 l	2.248 kg	Enquire variant
3.400 mm	4.770 l	2.320 kg	Enquire variant
